Bus Truck Vehicle Backup Cameras Wide View Angle Cab Cam Rearview Reverse

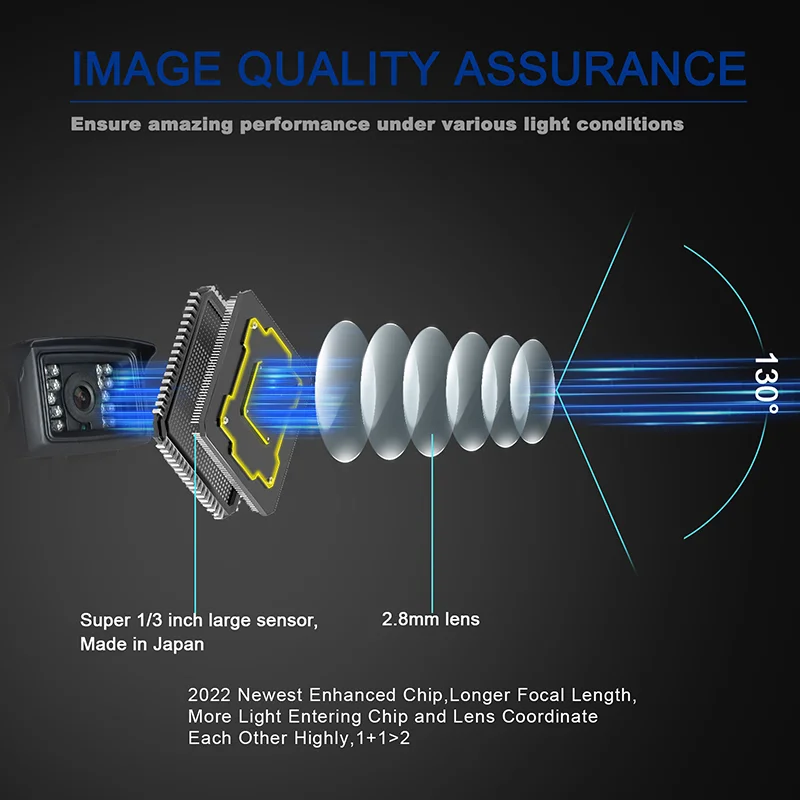

Super HD Camera: 6 layer glasses lens with an ultra wide 130°viewing angle, the backup camera will provide a complete view from behind your vehicle. This ensures complete safety with no blind spots.
Excellent waterproof design: Completely waterproof with an IP68 rating. Is means the cab cam camera will work fine in all weather conditions.
AWESOME Night Vision: With 18 infra-red lights, the trailer rear view camera will be able to see up to 50ft even in complete darkness! This night vision will be even without any ambient light at all.
Premium Quality Reverse Camera Case Design: It’s finished in a unique zinc metal casing, stainless steel screw makes it without rust problem.
Excellent waterproof design: Completely waterproof with an IP68 rating. Is means the cab cam camera will work fine in all weather conditions.
AWESOME Night Vision: With 18 infra-red lights, the trailer rear view camera will be able to see up to 50ft even in complete darkness! This night vision will be even without any ambient light at all.
Premium Quality Reverse Camera Case Design: It’s finished in a unique zinc metal casing, stainless steel screw makes it without rust problem.
Product Details
Key Attributes
Features:
High Definition: AHD signal output, supports 720P/1080P resolution.

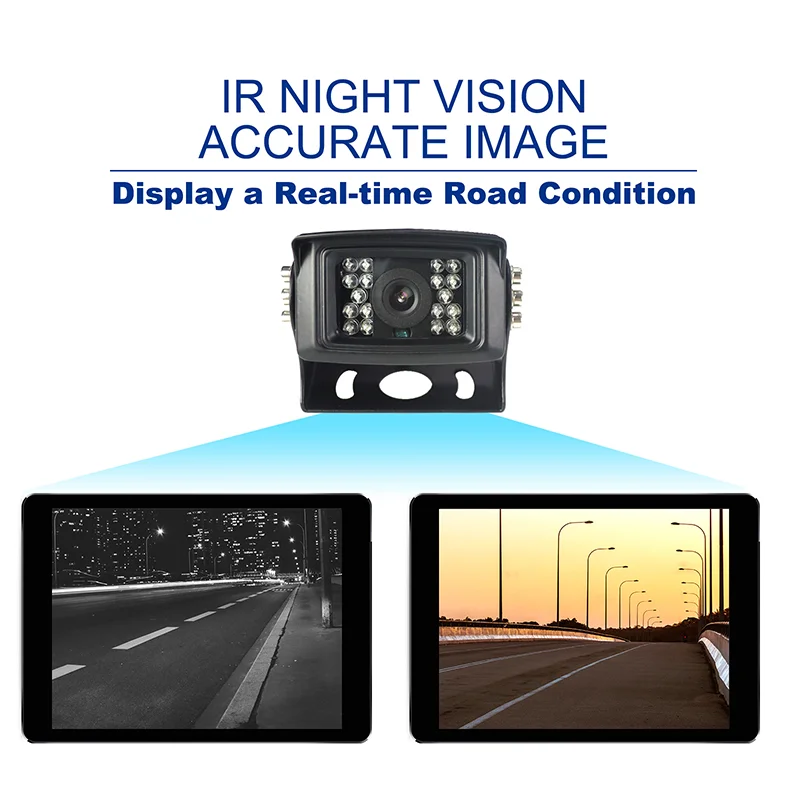

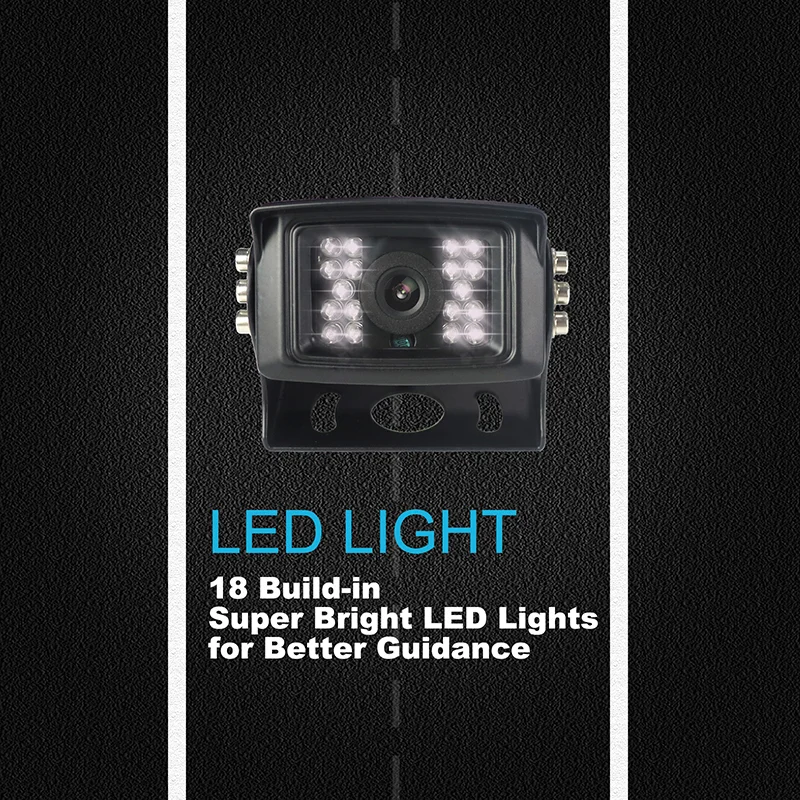

Superior Night Vision: Built-in 18 IR LEDs with IR-CUT auto switch for clear night imaging.

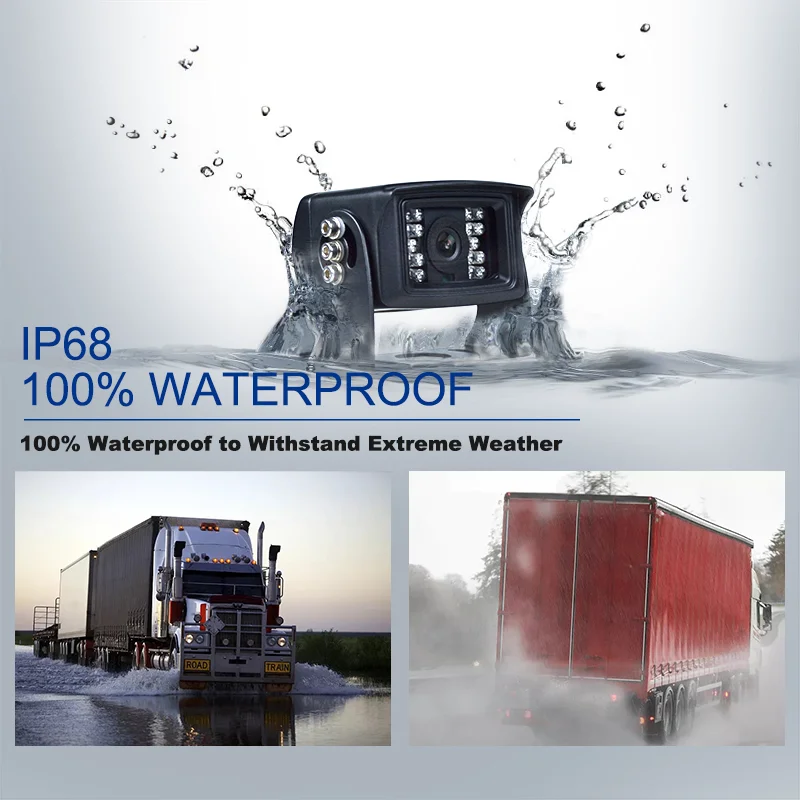

Waterproof & Durable: IP68-rated protection, suitable for harsh weather conditions.
Wide Temperature Range: Operating temp: -20℃ ~ 75℃; Storage temp: -30℃ ~ 85℃.
Auto Adjustment: Auto white balance, backlight compensation, and AGC for optimal image in varying light.
Wide-Angle Lens: Standard 2.8mm lens customizable angle up to 95°.
Low Power Consumption: Only 58mA operating current, 150mA when IR is activated.

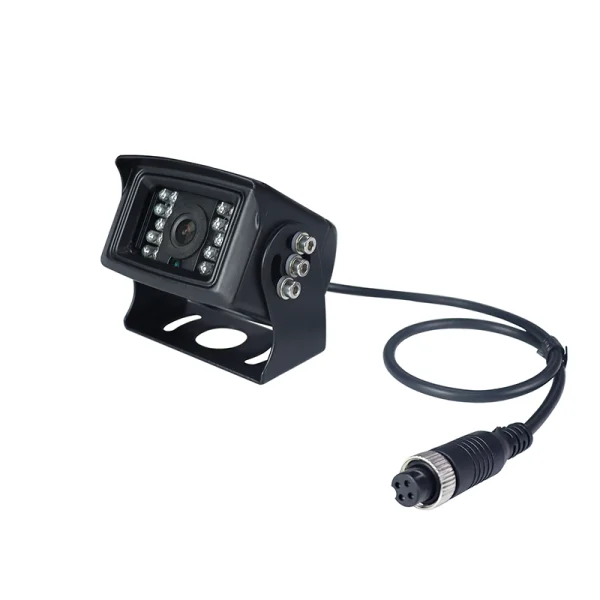

Standard Connector: 4-pin aviation plug for easy and reliable installation.
Industry-specific attributes
| Car Fitment | Toyota - Europe Truck |
| Function | Waterproof, NIGHT VIEW |
| Voltage | 9-36V |
Other attributes
| Model Number | RD-DC004 |
| Brand Name | HOPE |
| Type | Reverse Camera, Backup camera, Monitor |
| Resolution | 720P; 1080P |
| Image Sensor | 1/2.9＂GC2053 CMOS |
| TV system | PAL/NTSC (Option) |
| Light Compensation | Infrared |
| View Angle | 70°；95° |
| Waterproof | IP68 |
| Electronic Shutter | 1/50-1/100000S,1/60-1/100000s |
| Image Frame Rate | 1080P@25fps / 1080P@30fps |
| Minimum Illumination | 0.01 Lux / F1.2 |
| AGC | Auto |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Signal Output | AHD |
| Video Output | 1.0V P-P/75Ω |
| Connector | RCA or 4Pin (Option) |
| Signal to Noise Ratio | ≥46dB |
| Mirror/Normal Image Adjustable | Adjustable |
| Parking Line | Triple Colors (Option),Adjustable |
| Current Consumption | ≥150mA |
| Power | ≥2W |
| Operating Temperature | –20℃ ~ 75℃ |
| Storage Temperature | –30℃ ~ 85℃ |
| Light q'ty | 18 Light |
| cover material | metal |
| Net weight | 460G |

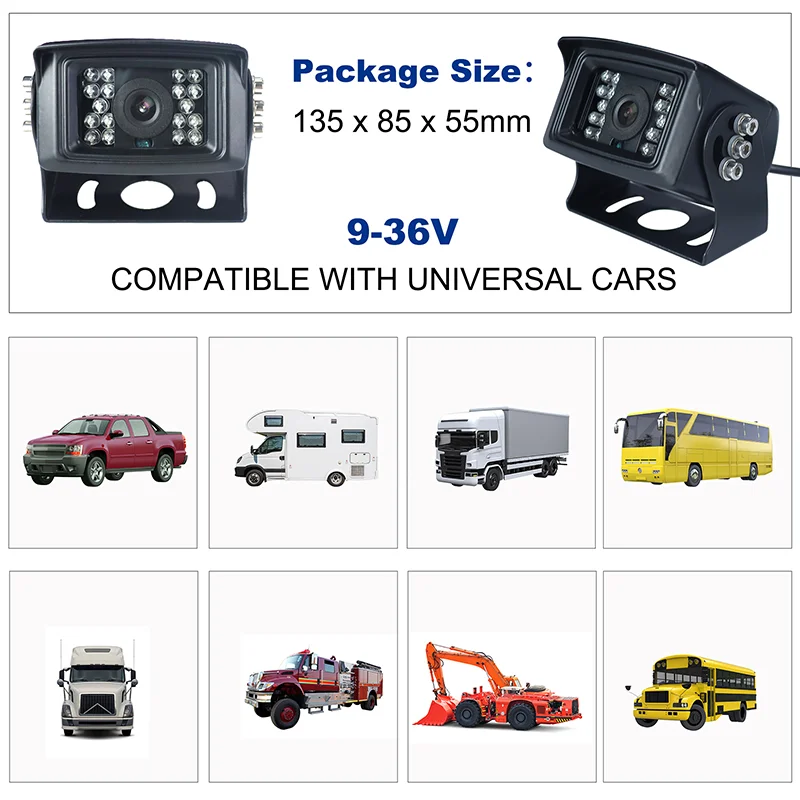

| Product packaging | Color box,135*85*55mm |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
